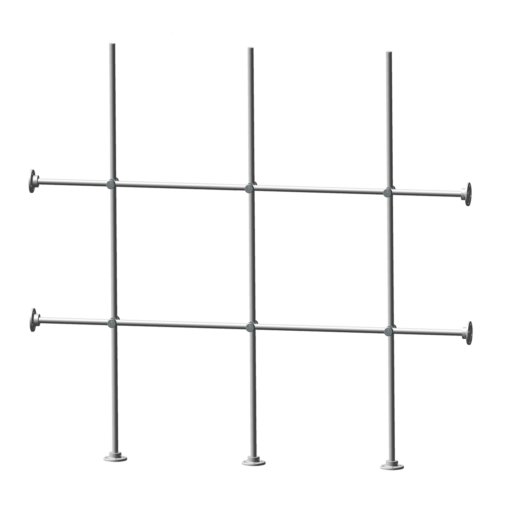

Side and Bottom Stainless Steel Lab-Frame Kit for Fume Hoods

$534.48$1,054.96

Description

This mounting option is recommended for situations when you need a lab support lattice to cover the entire back panel of your fume hood. The horizontal rods of this Lab-Frame should measure 1/4” less than the interior width of your hood.

Assembly Instructions:

Lattice frame: Use the open connectors and lattice rods to assemble the frame. The kit assumes a lattice spacing of 1-foot; however, this may vary depending on your application. Rods may be cut to fit as necessary.

Mounting: Attach vertical base plates to the horizontal and vertical rod ends. Base plates may be secured with #10 screws. Mounting Screws Not Included.

NOTE: Follow your fume hood manufacturers’ requirements for attachment.

4 foot Kit Includes:

(3) 1/2″ X 36″ Stainless Steel Rods
(2) 1/2″ X 38″ Stainless Steel Rods
(6) SL2A-1 Connectors
(7) SL8A-1 Vertical Base Plates
(1) Assembly Instructions

6 foot Kit Includes:

(5) 1/2″ X 36″ Stainless Steel Rods
(2) 1/2″ X 62″ Stainless Steel Rods
(10) SL2A-1 Connectors
(9) SL8A-1 Vertical Base Plates
(1) Assembly Instructions

8 foot Kit Includes:

(7) 1/2″ X 36″ Stainless Steel Rods
(2) 1/2″ X 86″ Stainless Steel Rods
(14) SL2A-1 Connectors
(11) SL8A-1 Vertical Base Plates
(1) Assembly Instructions

Additional information

Weight N/A
Dimensions N/A
Size

4', 6', 8'
