Aluminum Table Top Lattice Mounting Kit

$94.00$188.00

Clear
SKU: TMK8-A Category:

Description

This mounting option is recommended for situations when you need to move your lattice in between experiments. Lab-Frame not included.

Assembly:  Refer to Fume Hood Manufacturer recommendations for Recommended Installation.

  • [On your already assembled lattice frame] Connect vertical mounting base plates to the bottoms of your left and right-most rods and attach to the bottom of your fume hood or bench top with #10 screws. Screws not included.
  • On the ends of the 24″ aluminum rods, attach the swivel base plates at a 45-degree angle.
  • On the other end of each aluminum rod, attach a lattice connector
  • Connect to the assembled lattice frame.
  • Screw into the floor of your 4′ fume hood or bench top using #10 screws.

4′ Kit Includes:

(2) L8A-1 Vertical Bases
(2) L10A-1 Swivel Base Plates

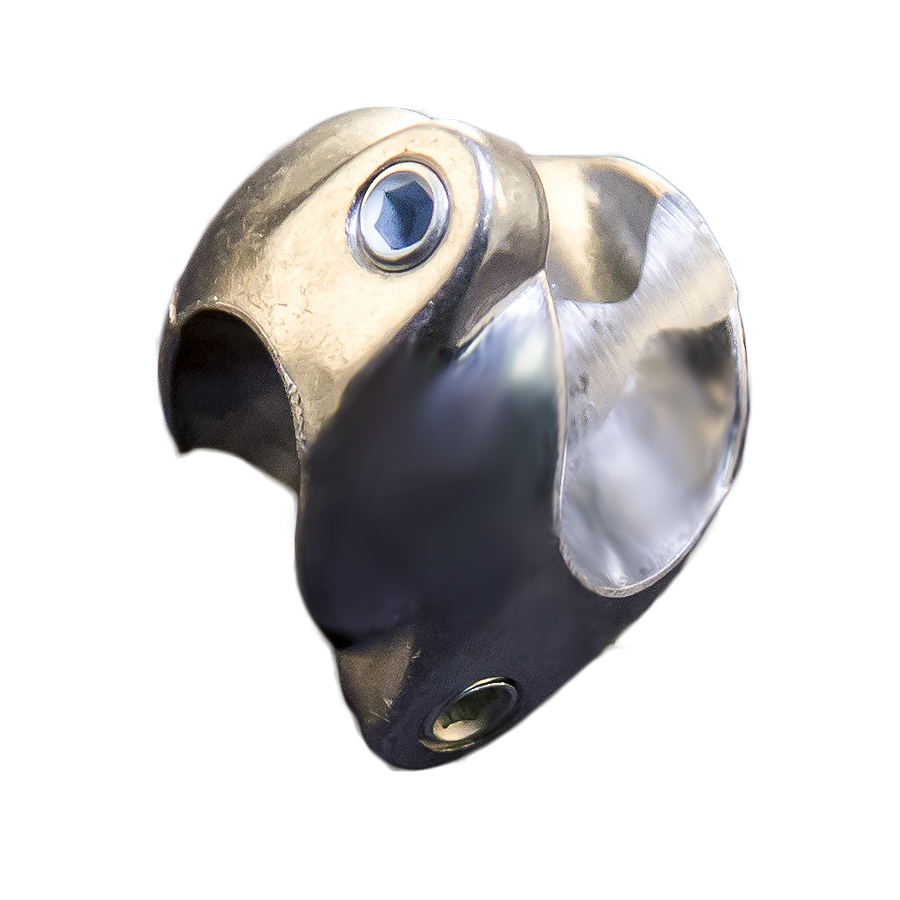

(2) L2A-1 Connectors
(2) L12R-24A 24” Aluminum Rods

6′ Kit Includes:

(3) L8A-1 Vertical Bases
(3) L10A-1 Swivel Base Plates
(3) L2A-1 Connectors
(3) L12R-24A 24” Aluminum Rods

8′ Kit Includes:

(4) L8A-1 Vertical Bases
(4) L10A-1 Swivel Base Plates
(4) L2A-1 Connectors
(4) L12R-24A 24” Aluminum Rods

Additional information

Weight N/A
Dimensions N/A
Size

4', 6', 8'
